Fairway ION Crossing Proposal - How It Rates

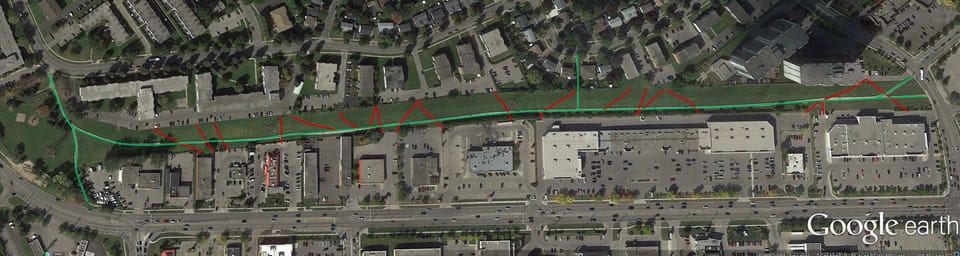

In August, we wrote about the missing crossing of the ION tracks from Traynor Ave to Fairway Ave in Kitchener. Without a pedestrian crossing, it means over a kilometre between crossings, and many residents are now cut off from services that used to be a walkable distance away.

Thanks to the help of the neighbourhood community, the issue made it on to the municipal radar, and the City of Kitchener recently had a public feedback session seeking feedback for a proposed crossing of the ION tracks. See the display boards here.

Read on for some analysis of what’s good, what’s bad, an analysis of how it will impact trips compared to before, and whether a crossing further west at 652 Fairway Rd (Fresh Burrito) might be better.

The Proposal

Update: The City of Kitchener would like to stress “a crossing at the midpoint was assumed for walk shed mapping purposes only so that staff could do a baseline review. Further analysis is being conducted to determine the proposed facility type and location.” In that context, the below analysis still conveys the relative merits of different crossing locations, however the “Kitchener proposed” location can be taken as more hypothetical.

The City of Kitchener is proposing a crossing between 500 and 560 Fairway Rd S, between Swiss Chalet and Michael’s:

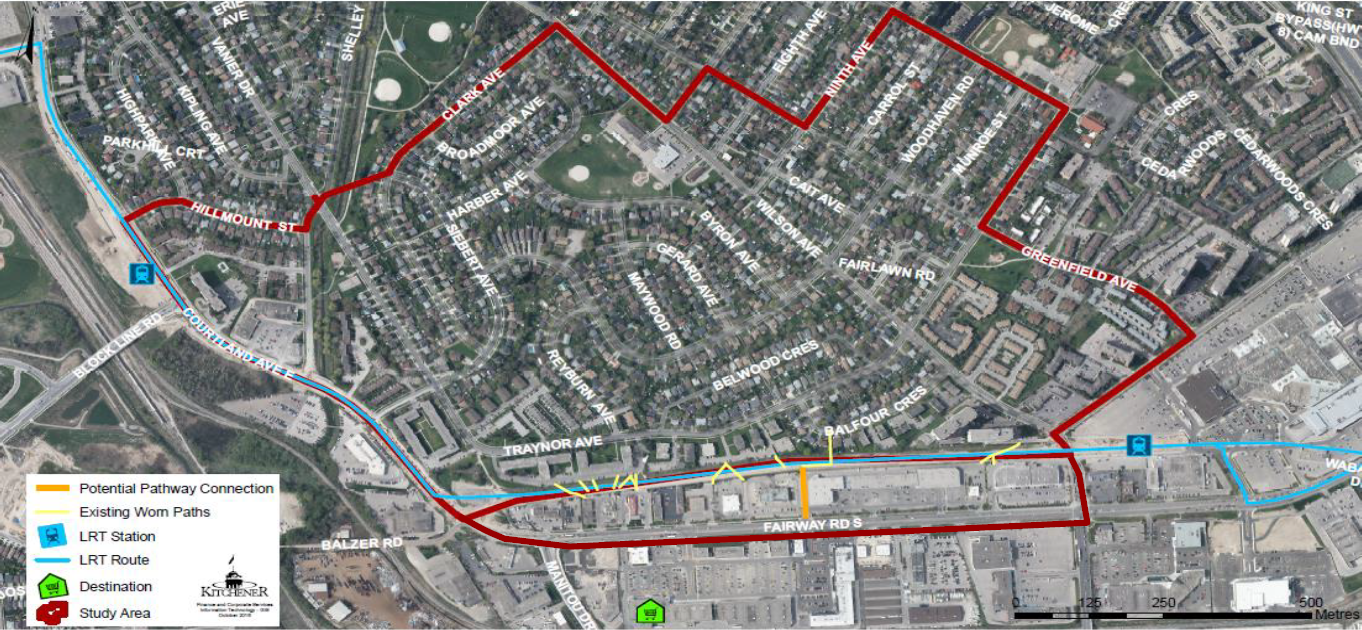

The City of Kitchener proposes a pedestrian crossing (in orange) of the ION tracks between 500 and 560 Fairway Rd S.

The study hasn’t ruled out a tunnel or bridge yet, but given the long ramps that would be required for a bridge, and the recently buried hydro lines underneath the tracks, it seems unlikely that there will be anything but a level pedestrian crossing, much as we have seen at several points around the University of Waterloo.

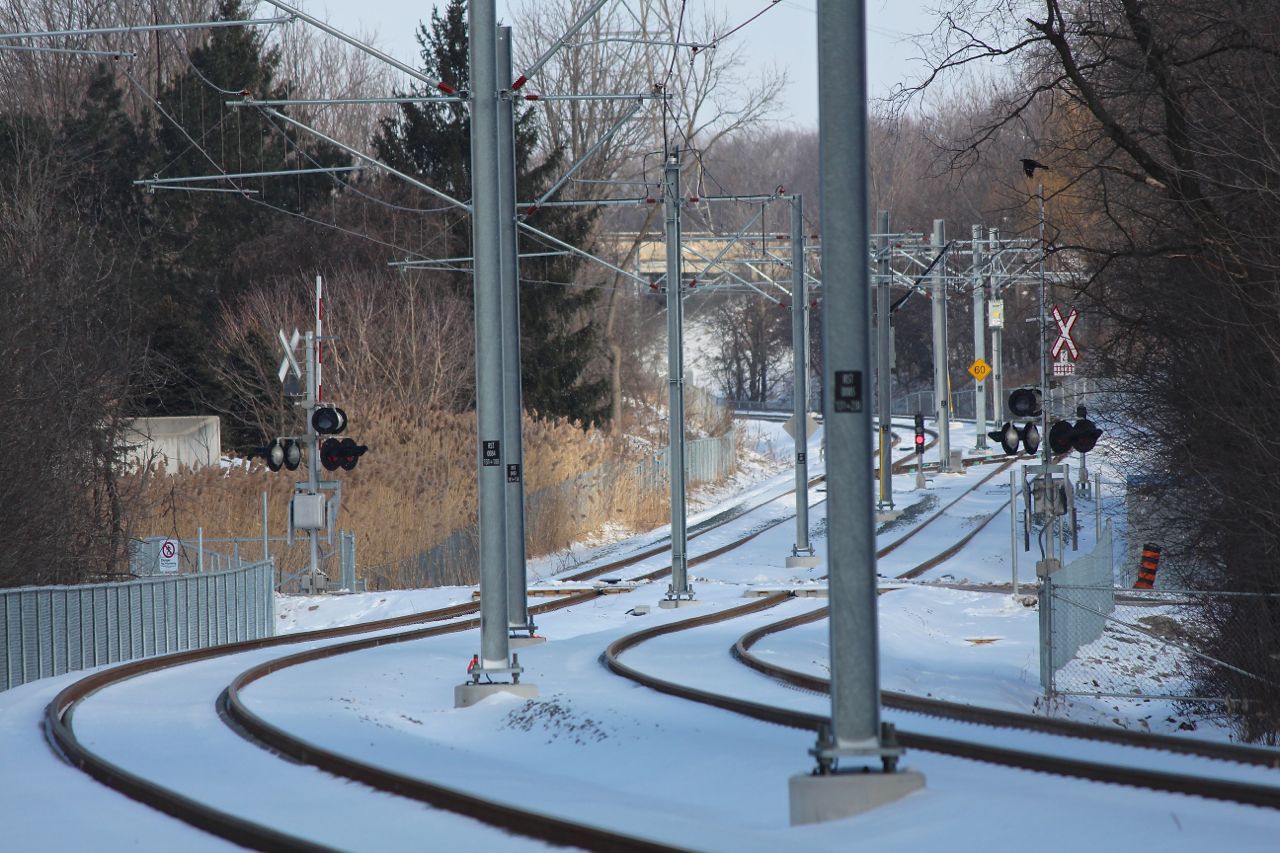

A pedestrian crossing near Albert McCormick Community Centre across a high speed section of the Waterloo Spur. A Fairway crossing might look similar to this. (Iain Hendry)

What are the tradeoffs? There are a couple reasons working for this location:

• This is within 50m of the midpoint between the crossings at Wilson to the east and Courtland to the west.
• It is close to the only official trail entrance from the north, from Balfour Cres.
• It connects directly to a signalized intersection on Fairway Ave.
• The large strip mall at 500 Fairway might be more amenable to a public path on a relatively small portion of their property.

However, those conveniences come at a cost. The higher density housing on Traynor Ave is all to the west of the proposed crossing, and most of the retail and services on Fairway are also to the west, meaning a lot of trips will involve walking east to the crossing, and west back to the destination. To the east of the crossing are relatively low density single family homes on Balfour Cres, and a self storage facility on Fairway Ave, neither of which will be significant destinations. The apartment towers on Wilson Ave don’t even have access to the Hydro corridor, so residents there do not stand to benefit, as they can use the Wilson crossing without too much detour.

Trip of Maximum Inconvenience

The shortest walking distance between selected points. (1) Before ION (2) After ION, no crossing (3) After ION, crossing at 500-560 Fairway (4) After ION, crossing at 652 Fairway. When two route options are shown, it means the walking distance is the same for both (Google Maps)

Another way to rate a proposal for a crossing is by comparing the Trip of Maximum Inconvenience. Of trips that were being made before ION, which are being the most negatively impacted? We get this by doing the following:

• Choose destinations that are across the ION tracks from each other.
• Note the minimum walking distance between them before ION.
• Note the minimum walking distance between them after ION.
• The Trip of Maximum Inconvenience is the trip that has the biggest difference between the walking distances before and after ION.

Here we test out three trips:

1. Reyburn Ave @ Traynor to 666 Fairway (McDonalds)
2. 241 Traynor Ave to 560 Fairway (Swiss Chalet)
3. Balfour Cres to Running Room

And compare them under 4 scenarios:

• Walking distance before ION, using the informal crossings of the Hydro Corridor
• Walking distance after ION, with no mid-block crossings
• Walking distance after ION, with a crossing as proposed at 500-560 Fairway (Swiss Chalet)
• Walking distance after ION, with a crossing at an alternate location of 652 Fairway (Fresh Burrito)

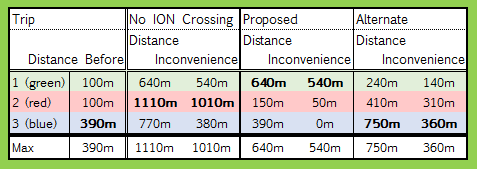

Walking distances across the Fairway Hydro Corridor, before ION, after ION, after the proposed crossing, and after an alternate crossing location (Text version)

Results

We can see that without a crossing, trip 2 (red) is left with an astonishing 1.1km inconvenience. This is our Trip of Maximum Inconvenience. It stands to reason that people simply won’t make that trip anymore, if they need to walk an additional 1.1km. Trips 1 (green) and 3 (blue) also have an extra walk of 540m and 380m. Everyone has to walk a lot farther.

With the proposed crossing, trips 2 and 3 are almost back to their original distance, however trip 1 is no better off than without a crossing at all. This is our new Trip of Maximum Inconvenience, where an extra walk of 540m is now required.

The alternate crossing we propose, at 652 Fairway, has the lowest Trip of maximum Inconvenience, only causing trip 3 an additional 360m walk. The trip is 110m longer than trip 1 under the previous scenario, but the additional walk, compared to before ION construction, is much less.

Conclusion

When looking at population density of the area, it’s clear that most apartment buildings are in the vicinity of trip 1 and trip 2, while trip 3 is serving more single family homes. The alternate crossing we propose is also much closer to the most vital service on Fairway, the grocery store, and would mean almost no additional distance for anyone going there.

The City of Kitchener’s proposed location is certainly much better than no crossing at all. However, if it is at all possible, the neighbourhood would be better served with a crossing further to the west, where there are more people, and more existing trips are already taking place.

Send Your Feedback

The City of Kitchener is still actively seeking feedback, so please look over the display boards, the comment sheet, and send your comments by Feb 24th to: Barry Cronkite, C.E.T. Manager of Transportation Planning City of Kitchener barry.cronkite@kitchener.ca
